Spot Light 12mm 12° ultraviolet 405nm M12/4-pin analogue, trigger mode only

Active Illumination Area (mm) 12

IP Category IP67

Connector M12/4 Male

Features Analogue, Trigger mode only

LED Beam Angle (°) 12

Weight (g) 24

Dimensions (mm) Ø18xH57

Direct, incident illumination Illumination of UV-sensitive components & material

Red Ultraviolet White Blue Infrared Green

LED Wavelength 660 nm LED Wavelength 385 nm LED Wavelength 395 nm LED Wavelength 5700K LED Wavelength 470 nm LED Wavelength 365 nm LED Wavelength 850 nm LED Wavelength 405 nm LED Wavelength 625 nm LED Wavelength 940 nm LED Wavelength 528 nm

Configuration

Model series	Wavelength	Datasheet	2D drawing	3D model
SP2-12UV405 (More variants)	405

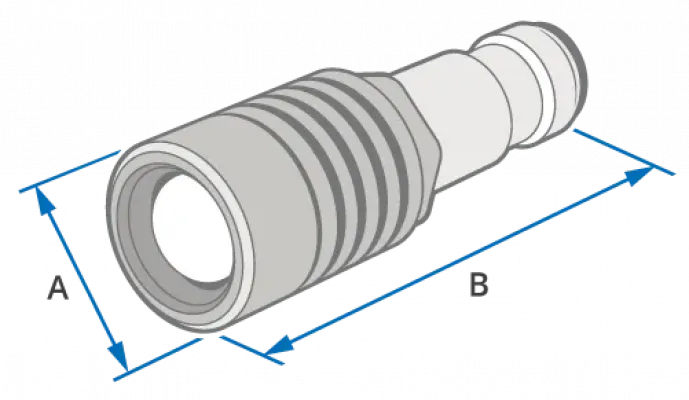

Model series	A - Outer Ø (mm)	B - B length (mm)	Weight (g)
SP2-12UV405	18	57	24
